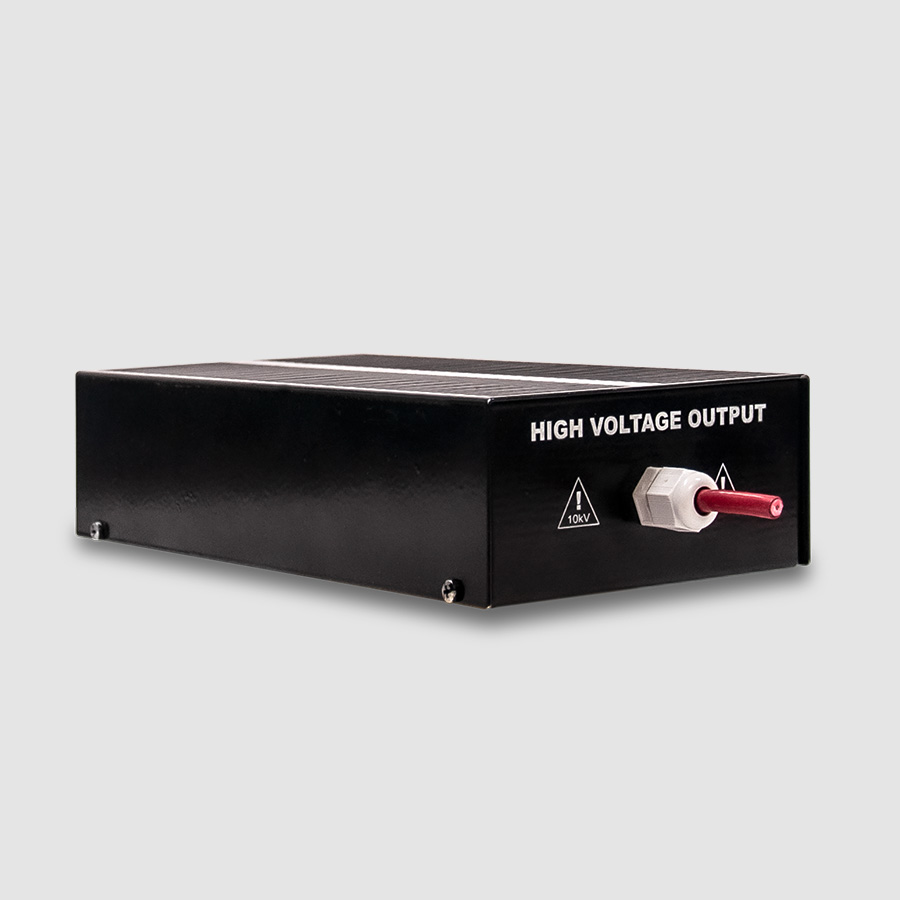

HV10KX2
Compact high-voltage power supply module
Reliable DC high-voltage solution designed for low-to-medium power applications requiring precision and stability.
Overview
HV10KX2 is a low-to-medium power DC high-voltage power supply designed for internal mounting applications. It provides a stabilized output voltage over a wide range, controlled by an analog DC control signal. The device features an output current limit (threshold). The high-voltage output is terminated with a free cable end, 200 cm in length.
Key features
- Output voltage up to 10 kV DC
- Adjusting potentiometer resistance
- Stable and low-noise operation
- Overcurrent protection
- Compact and integration-ready design
Applications
- Scientific instrumentation
- Radiation detectors
- Electrostatic systems
- Sensor biasing
- Laboratory equipment
Technical Specifications
- Output voltage 0 – 10 kV
- Input power voltage 24 V DC / 6 A
- No-load current consumption 120 mA @ 0 V / 400 mA @ 10 kV
- Overcurrent protection 7 mA
- Control voltage 0 – 10 V
- Adjusting potentiometer resistance 20 kΩ
- HV on/off control voltage 24 V DC
- HV output status Open collector (40 V, 300 mA)
- Output voltage monitor 1 V / 1 kV
- Output current monitor 1 V / 1 mA
- Monitor signal accuracy 1 %
- Indication 2× LED
