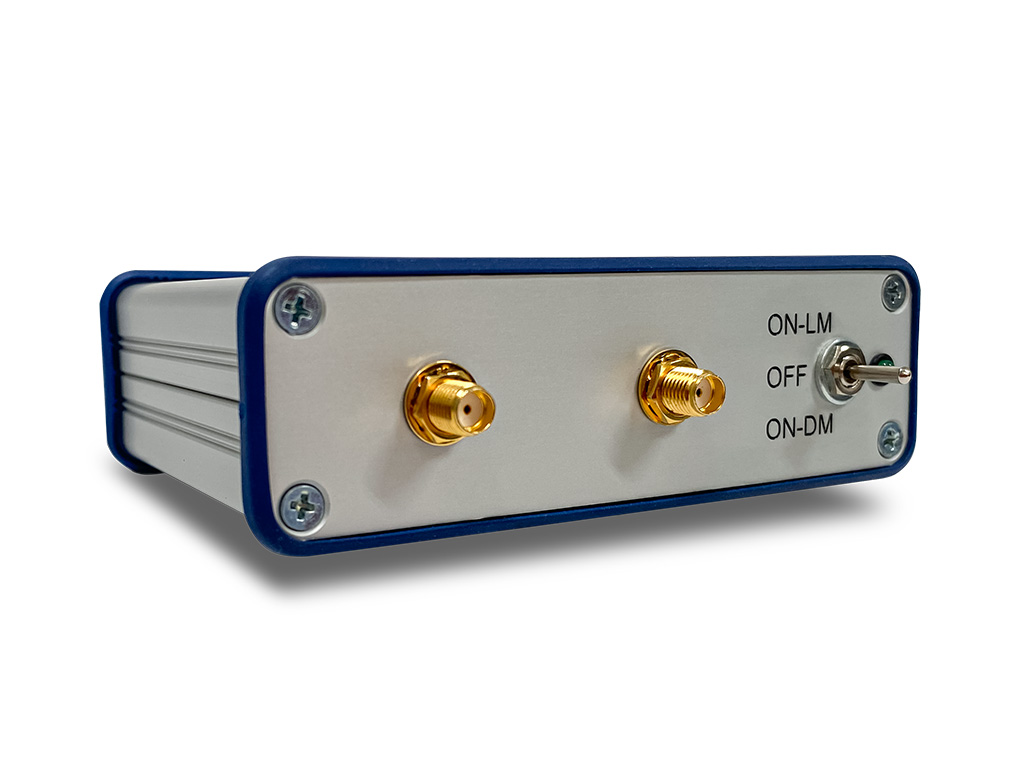

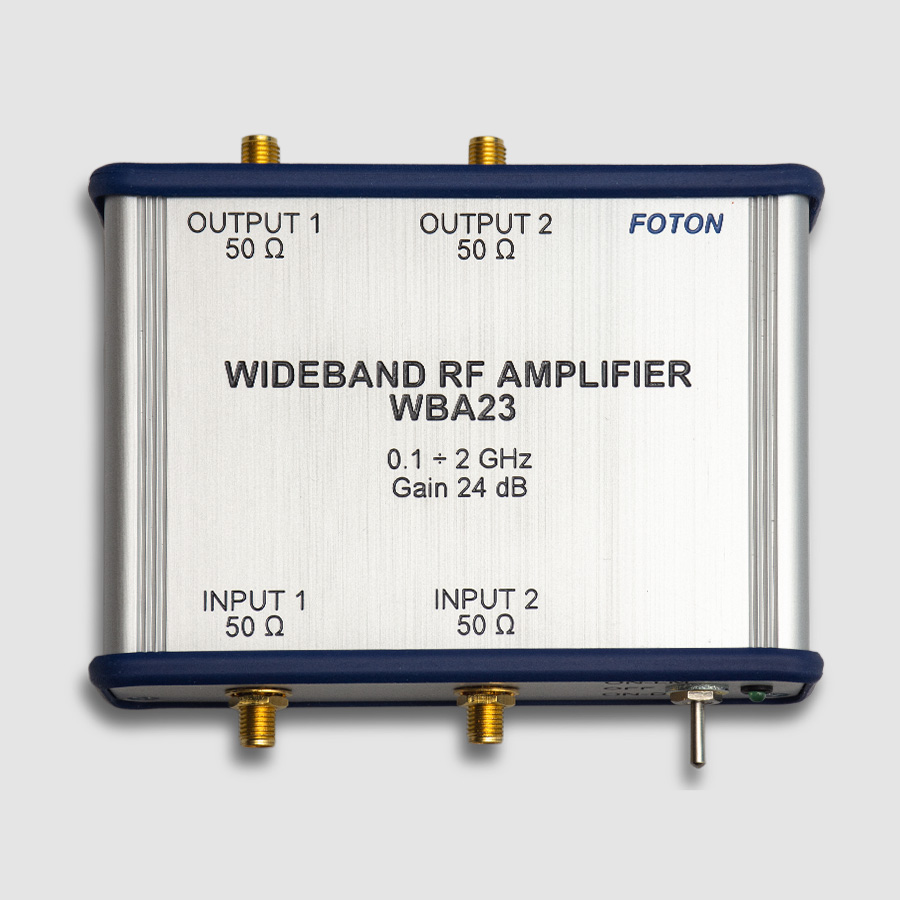

WBA23
Wideband RF Amplifier
Wideband dual-channel RF amplifier delivering consistent gain and reliable signal amplification across the 0.1–2 GHz frequency range.
Overview
The WBA23 is a dual-channel wideband RF amplifier designed for applications requiring stable signal amplification across a broad frequency range. Covering 0.1 GHz to 2 GHz, it delivers a nominal gain of 24 dB while maintaining standard 50 Ω input and output impedance.
Designed for laboratory, industrial, and research environments, the WBA23 provides reliable broadband amplification for measurement systems, detector electronics, communication equipment, and RF test setups. With a maximum output power of 17 dBm and operation from a 12 V DC supply, it offers an efficient and easy-to-integrate solution for a wide range of RF applications.
Key features
- Dual-channel RF amplifier
- Wide frequency range from 0.1 GHz to 2 GHz
- Low power consumption (12 V DC / 200 mA)
- Compact and easy-to-integrate design
- Designed specifically for SiPM-based systems
Applications
- RF measurement and test systems
- Detector and sensor electronics
- Research and development laboratories
- General-purpose broadband RF applications
- Signal conditioning and amplification
Technical Specifications
- 2 independent channels
- Frequency range: 0.1–2 GHz
- Nominal gain: 24 dB
- Maximum output power: 17 dBm
- Input impedance: 50 Ω
- Output impedance: 50 Ω
- Power supply: 12 V DC
- Current consumption: 200 mA
- The WBA23 dual-channel architecture enables parallel signal processing and simultaneous operation of multiple RF paths within a compact device.
Need more information?
WBA23
Contact us for technical details or a custom solution.
