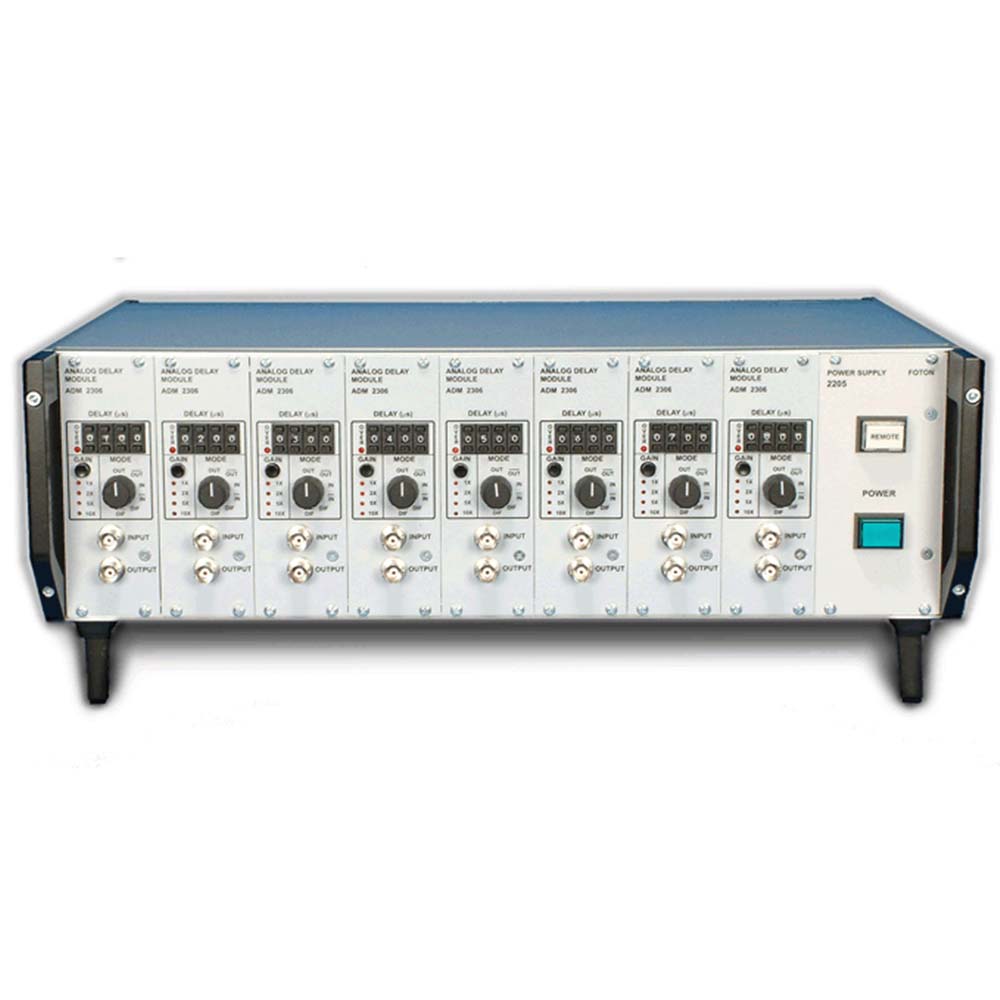

DLS 08 is a device able to delay analogue electric signals. The device is built according to a modular concept allowing delaying of up to 8 independent electric signals. Signal delay can be set to 2 to 1600 µs and it is also possible to amplify the signal (1×, 2×, 5×, 10×) and choose desired output signal mode; i.e. non-delayed signal, delayed signal, difference between delayed and non-delayed signal with an option to obtain inverted signal as well. The device contains 5th order active filters with limit frequencies of 500kHz/1 MHz. All parameters can be set up locally on the device or over TCP/IP connection as the device acts as a web server.
Parameters
|
Delay time |
2 to 1600 µs |
|
Resolution in time |
1 µs |
|
Output signal |
OUT, INV-OUT, |
|
Delay Input – IN resp. Input -(INV-IN) |
less than 0,5 µs |
|
Gain |
1×, 2×, 5×, 10× |
|
Input voltage |
0 to 5V |
|
Input impedance |
100 kΩ |
|
Max. output voltage |
± 5 V ± 5% |
|
Low-pass filter |
500 kHz / 1 MHz (default 1 MHz) |
|
Max output load |
500 Ω |
|
Standard accuracy (DC) |
0,30 to 0,35 % |
|
Additional accuracy (DC) |
0,01 % / °C |
|
Setting time |
15 min |
|
Input, output connectors |
BNC |
|
Power |
AC 230 V, 50/60 Hz |
|
Fuse |
400 mA, 5×20 mm |
|
Dimmension |
19″ × 3U × 280 mm |
|
Weight |
4 kg |
|
No of ADM2306 modules |
1 to 8 |
|
Remote control |
Yes, TCP/IP protocol |
|
Remote control SW |
web server application |
